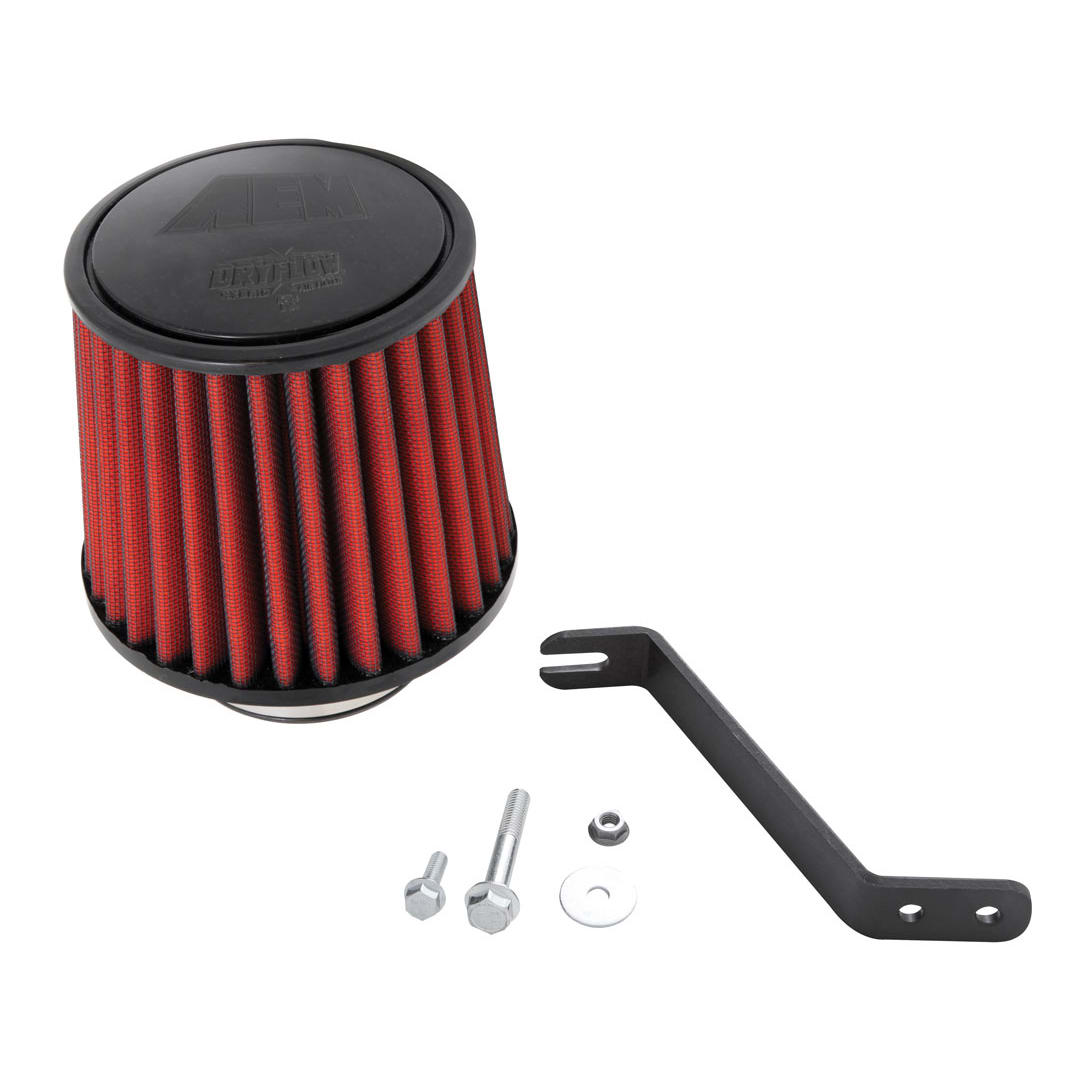

22-521 AEM Short Ram Intake System

$101.99USD
In stock / Free Shipping
SKU
AEM-22-521
Locate a Dealer
S.R.S.TIBURON 03-06 V6
The AEM 22-521 Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter is replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Hyundai Tiburon, SE and GT models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. This air intake system was developed to adapt to the factory air intake tube as well as the engine’s factory emissions control devices including the mass airflow sensor. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools and it is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 22-521 vehicle applications to determine the legal status for each vehicle.
  • Affordable and simple horsepower upgrade
  • Improved throttle response and engine sound
  • Easy to install with common hand tools
  • Washable and reusable lifetime air filter
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • AEM Lifetime Limited Warranty
Replacement Filter21-203DK
Air Filter ColorRed
Air Filter MaterialNon-woven Synthetic
Air Filter Outlet ShapeRound
Clamps Included1
Clamp MaterialSteel
Clamp StyleRegular
Couplers IncludedNone
WarrantyLimited Lifetime
Product StyleAEM Short Ram Intake System
Air Filter Height5.125 in (130 mm)
CARB EO NumberD-670-15
Street Legal In All US StatesYes
TUV Approved (Europe)No
Weight6 lb (2.7 kg)
Air Filter Large End Diameter6 in (152 mm)
Product Box Height8.5 in (216 mm)
Product Box Length18.25 in (464 mm)
Product Box Width14.5 in (368 mm)
Mounting Hardware IncludedYes
No cross references found for this part
DIY Level

Advanced Moderate Easy

Tools Needed

Wrench, Extension, Flat Blade Screwdriver, Allen Wrench

Installation Time

90 Minutes

Resources:

Installation PDF

Installation Instruction Sheet
