Short Ram Intake System

Special Price $349.99 Regular Price $399.99
In stock
SKU
AEM-22-547B

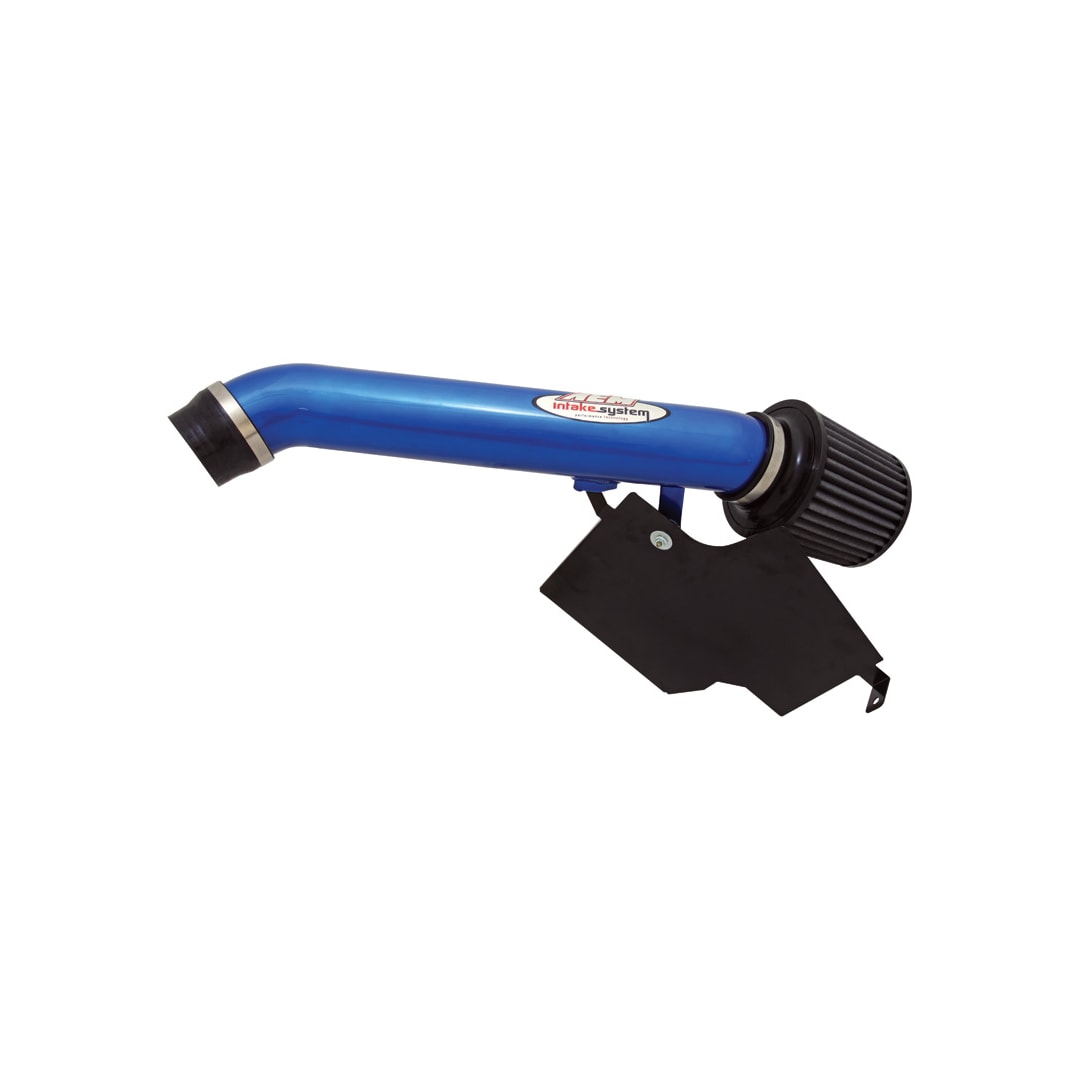

The AEM 22-547B Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this intake system, allowing air to enter the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The air filter is protected by a heat shield which is designed to protect the filter from hot engine air in order to preserve horsepower gains. The intake tubing is constructed from mandrel-bent aluminum featuring a durable blue powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air flow sensor and breather hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 22-547B vehicle applications to determine the legal status for each vehicle.
  • Affordable and simple horsepower upgrade
  • Improved throttle response and engine sound
  • Low restriction aluminum intake tube
  • Easy to install with common hand tools
  • Lasts up to 100,000 miles before service is required (depending on driving conditions)
  • Washable and reusable lifetime air filter
  • AEM Lifetime Limited Warranty
Replacement Filter21-2110DK
Air Filter ColorRed
Air Filter MaterialNon-woven Synthetic
Air Filter Outlet ShapeRound
Clamps Included3
Clamp MaterialSteel
Clamp StyleRegular
Couplers IncludedNone
WarrantyLimited Lifetime
Product StyleAEM Short Ram Intake System
Intake Pipe Color / FinishBlue
Intake Pipe MaterialAluminum
CARB EO NumberD-670-15
Street Legal In All US StatesYes
TUV Approved (Europe)No
Weight8.5 lb (3.9 kg)
Product Box Height14.94 in (379 mm)
Product Box Length22.2 in (564 mm)
Product Box Width14.5 in (368 mm)
Mounting Hardware IncludedYes
No cross references found for this part
DIY Level

Easy Moderate Advanced

Tools Needed

Wrench, Extension, Flat Blade Screwdriver, Allen Wrench

Installation Time

90 Minutes

Resources:

Installation PDF

Installation Instruction Sheet
